Bathroom Waterproofing in Karachi: Cost, Process & Why It Fails

Bathroom waterproofing in Karachi costs between PKR 150 and PKR 350 per square foot for new construction or renovation, depending on whether the sunken slab is being treated from scratch or an existing bathroom is being repaired for active seepage. Advanced Engineering & Construction applies waterproofing treatment as part of every new bathroom build and every bathroom renovation project in Karachi, under PEC Licence No. 17347, Category C4/E. The cost depends less on the brand of chemical used and more on whether the application addresses the actual source of the leak.

Most bathroom waterproofing failures in Karachi don’t happen because the wrong chemical was used. They happen because the sunken slab and the floor-wall junction were never properly sealed before tiling started, and by the time seepage shows up on the ceiling below, the only fix is breaking the floor open again. This guide explains what waterproofing actually involves, where it fails, and what it should cost.

What Bathroom Waterproofing Actually Covers

Advanced Engineering & Construction applies waterproofing treatment as part of every new bathroom build and every bathroom renovation project in Karachi, under PEC Licence No. 17347, Category C4/E. A bathroom floor sits on a sunken slab, lowered roughly 150 to 230 millimetres below the level of the rest of the house to accommodate drainage pipes and the trap below the floor finish. This sunken portion is the highest-risk leakage zone in any bathroom because it sits in direct contact with standing water, plumbing penetrations, and constant moisture, and it is the hardest area to inspect once tiling is complete.

Waterproofing the sunken slab means sealing the concrete surface, the pipe penetrations passing through it, and the vertical junction where the floor meets the wall, before the slab is filled and the floor finish is laid. Coving, the technique of forming a curved rather than a sharp angle between floor and wall, is applied at this stage because sharp corners crack under thermal movement and become the first point of failure. Skipping coving to save time is one of the most common shortcuts taken on budget bathroom builds in Karachi, and it shows up as seepage within one to two years.

Waterproofing the sunken slab means sealing the concrete surface, the pipe penetrations passing through it, and the vertical junction where the floor meets the wall, before the slab is filled and the floor finish is laid. Pipe and drain positioning is finalized by AEC’s plumbing contractors in Karachi before any waterproofing membrane is applied, since sealing around pipes that move or get repositioned later defeats the treatment entirely. Coving, the technique of forming a curved rather than a sharp angle between floor and wall, is applied at this stage because sharp corners crack under thermal movement and become the first point of failure.

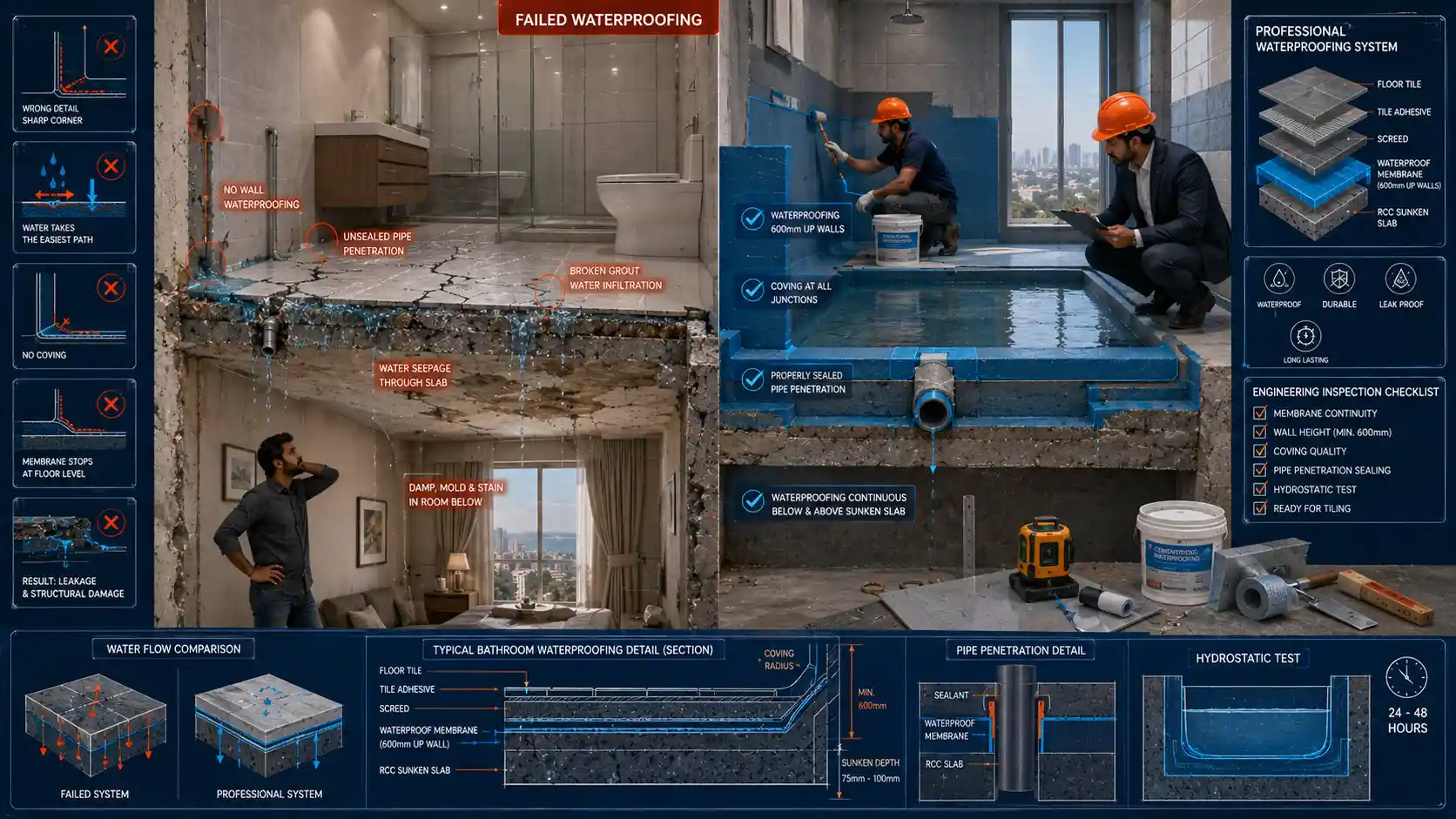

Why Most Bathroom Leaks Start at the Wall Joint, Not the Floor

The most common misconception among Karachi homeowners is that bathroom leaks come from the floor failing. In practice, the floor-wall junction is where the overwhelming majority of leaks originate, not the flat floor surface itself. Water pools at the base of the shower or sink area, finds the seam where vertical and horizontal surfaces meet, and tracks downward through hairline gaps that tiling alone cannot seal.

This is why waterproofing applied only to the flat floor area, without extending up the wall to at least 600 millimetres above the sunk level, fails even when the chemical itself is high quality. The membrane or coating needs to run continuously across the floor, up the vertical wall junction, and around every pipe penetration as one unbroken layer. A waterproofing job that stops at the floor edge has already left the most vulnerable point untreated.

Bathroom Waterproofing Cost in Karachi by Scope

New construction sunken slab waterproofing, applied before tiling as part of the original build, typically runs PKR 150 to PKR 250 per square foot, including surface preparation, membrane or cementitious coating, and coving at the wall junction. This is the lowest-cost scenario because the slab is open and accessible, with no tile removal or demolition required.

Renovation waterproofing on an existing bathroom with active seepage costs more, typically PKR 250 to PKR 350 per square foot, because the existing floor tiles, screed, and in some cases the sunken fill material must be broken out before the slab can be treated and rebuilt. A water ponding test, where the treated area is flooded and left for 24 to 48 hours to confirm no leakage before retiling, should be standard practice on every job and adds time but not significant cost.

Underground water tank waterproofing and roof waterproofing are priced separately from bathroom work since they involve different surfaces, different hydrostatic pressure conditions, and different membrane systems. A homeowner planning both bathroom and roof or tank waterproofing should request itemized quotes for each, since combining unrelated waterproofing scopes into one blended per-square-foot rate often hides which areas actually received proper treatment.

Karachi-Specific Factors That Affect the Job

Karachi’s monsoon season puts sustained pressure on any waterproofing system that wasn’t properly terminated at parapet walls, pipe penetrations, and floor-wall junctions. The failure point in most Karachi waterproofing jobs is not the membrane material itself but the lapping detail at these termination points, where incorrect overlap allows water to track back under the system during heavy rainfall, even when the flat surface coating is intact.

Bathrooms in older Karachi construction, particularly buildings predating modern SBCA-compliant designs, often have sunken slabs that were never properly waterproofed at the time of construction. Renovating these bathrooms requires treating the slab as new work rather than assuming the original waterproofing layer offers any residual protection, since cementitious coatings from decades-old construction have typically failed long before visible symptoms appear.

Material quality matters less than most homeowners assume, and contractor application technique matters more. A premium imported coating applied without proper surface preparation, correct slope toward the drain, and continuous coving at the wall junction will fail faster than a standard cementitious system applied correctly. This is the detail most bathroom waterproofing quotes in Karachi don’t explain, because explaining it would require the contractor to discuss application technique rather than just naming a brand.

How AEC Approaches Bathroom Waterproofing

Advanced Engineering & Construction treats waterproofing as a structural detail, not a finishing add-on. Every sunken slab AEC waterproofs gets sealed at the floor, the vertical wall junction to a minimum of 600 millimetres, and every pipe penetration, followed by a water ponding test before any tile work begins. This sequence is standard on AEC’s new bathroom builds and on every bathroom renovation handled under AEC’s PEC Licence No. 17347, Category C4/E.

For renovation projects where seepage has already damaged the ceiling below, AEC’s team identifies whether the failure originated at the slab, the wall junction, or a plumbing penetration before recommending a fix, rather than re-coating the visible surface and leaving the actual source of the leak untreated. This diagnostic step is what separates a lasting repair from a temporary patch that resurfaces the following monsoon season.

Getting a Waterproofing Quote

A bathroom waterproofing quote should specify exactly what’s included: surface preparation, the wall junction height being treated, pipe penetration sealing, coving, and whether a water ponding test is part of the scope. Quotes that name only a chemical brand and a flat rate per square foot without describing the application sequence are the ones most likely to result in a repeat call within a year or two.

For a site inspection and project-specific waterproofing quote in Karachi, contact Advanced Engineering & Construction at 0320 1176827 or Advancedengineeringc@gmail.com. AEC can assess whether a new bathroom build or an existing seepage problem needs slab-level treatment, and provide a scope-based quote rather than a generic rate.

Frequently Asked Questions

How much does bathroom waterproofing cost in Karachi?
New construction sunken slab waterproofing in Karachi typically costs PKR 150 to PKR 250 per square foot. Renovation waterproofing on an existing bathroom with active seepage runs PKR 250 to PKR 350 per square foot due to the demolition and slab rebuild involved.

Why does my bathroom leak even after waterproofing was done?
Most failures happen because the waterproofing membrane or coating stopped at the floor edge instead of extending up the wall junction, or because pipe penetrations weren’t properly sealed. The floor-wall junction, not the flat floor area, is where the majority of bathroom leaks in Karachi originate.

Is AEC licensed to carry out waterproofing and bathroom construction in Karachi?
Yes. Advanced Engineering & Construction holds PEC Licence No. 17347, Category C4/E, covering civil works including bathroom construction and waterproofing, valid through June 2026.

What is a sunken slab and why does it need waterproofing?
A sunken slab is the section of bathroom floor cast 150 to 230 millimetres lower than the surrounding floor level to accommodate drainage pipes and the trap below the floor finish. It carries constant moisture and concealed plumbing, making it the highest-risk leakage zone in the bathroom if not properly sealed before tiling.

How long does bathroom waterproofing last in Karachi?
Properly applied waterproofing with correct surface preparation and wall junction coving typically lasts 8 to 15 years depending on the system used. Failures within 2 to 3 years almost always indicate incomplete application at the wall junction or pipe penetrations rather than product failure.
